SFL: Structured Function description Language Tutorial

• Control- and data path separation: SFL explicitly supports this concept by providing two types of I/O terminals: control related signals ('instrin', 'instrout') and data terminals ('input', 'output'). Signals declared as control input are always thought as driven with either '0'= inactive or '1'= active (positive logic system). Output control terminals 'instrout' are by default driven with '0'. If the programmer asserts such a signal it is true for exactly one clock cycle and changes back to false again (light-up principle). On the other hand data terminals have undefined values ('u'= unknown, 'z'= high impedance) if not explicitly driven.
• Functional description: SFL is not mixed with interconnection description but uses an object-oriented style for describing module hierarchy. An object can have multiple behaviors. Every behavior is associated with a control signal. A behavior gets "executed" if the corresponding control signal is triggered. For example let's say 'Alu' is an object with two behaviors 'add' and 'sub'. So registers can be assigned by simply writing 'reg1:= Alu.add(in1,in2).out' or 'reg2:= Alu.sub(in1,in2).out'.
• Explicit construct for describing state machines: finite state machines (FSM) play a major role in digital system design. SFL allows the programmer to describe a set of communication state machines in a compact manner.

Let's have a look at the whole source code before sorting out line after line. The design holds two modules: 'adder1' (one bit full-adder) is a submodule and used in the top module 'adder4' (bit slice implementation).

As in C language, SFL distinguishes between module declaration and module definition. Before the 'adder1' circuit can be used in the top module 'adder4', it must be declared. This is done in line 7..13. The definition of the 'adder1' behavior can be found in line 55..67. This definition code could be located in a separate file. Further it is not necessary to declare the top module 'adder4'.

Comments are delimited with /*this is a comment*/. SFL module syntax always starts with the facility declaration. The 'adder1' module (line 7) declares three one bit data inputs 'a', 'b', 'cin' and two one bit data outputs, the sum bit 's' and the carry-out bit 'cout'. The control terminal 'add' in line 10 is an important thing. As mentioned in the introduction, behavior of an object can be associated with a control signal. If doing so the 'add' behavior is only "executed" if this control signal is active. Line 12 shows the argument binding of the 'add' behavior with the 'instr_arg' construct. With this it is very easy to access the object 'adder1' and its behavior 'add' from other modules (module instantiation).

Before we use our 'adder1' object in the top module 'adder4', let's take a look at the actual implementation. After the facility declaration the 'instruct' keyword on line 60 starts the behavior definition related to the 'add' control signal. The 'par {..}' statement says what has to be done in parallel during that clock period. The sum bit 's' is realized with xor operations while the carry output bit 'cout' is formulated as a sum of product (SOP). Although this description holds some redundancy we leave it by this straightforward "truth table" definition and let the underlying PARTHENON synthesizer do the optimization work. In real designs its anyway appropriate to use building blocks such as adders or multipliers from a library, which is optimized for the target technology (CMOS, FPGA, etc).

Now since the 'adder1' module is declared and defined we can use it in the top module 'adder4'. Again we start with the facility declaration in line 19. Apart from input and output we have some internal facilities, i.e. four 1-bit adders ('ADDER0'.. 'ADDER3') and three selectors ('CARRY1'.. 'CARRY3') for the carry calculation. The 'adder4' object binds its behavior to the 'ADD' control signal. Line 27..35 show how easy submodules can get connected in SFL. The most significant bit (MSB) of the sum vector 'S' is assigned to the output of the 'ADDER3' object by simply "calling" its behavior 'add' with the corresponding arguments. The SFL operator '||' stands for concatenation with the order MSB..LSB. Thus the sum vector 'S=[S<3>.. S<0>]' can be assigned as in line 27..30. In line 31 and the following we do not have to repeat the argument binding (i.e. 'COUT= ADDER3.add( A<3>, B<3>, CARRY3)' ) since a hardware object can only get connected once. Because all the assignments are within the 'par' statement, their order does not matter.

After listing the simulated modules and the facilities of the top module 'adder4', simulation starts. Our circuit does what we want. Interesting are the control signals 'ADD' and 'ADDER0.add'. If they are zero, the output 'S' and 'COUT' are in an undefined state 'z'.

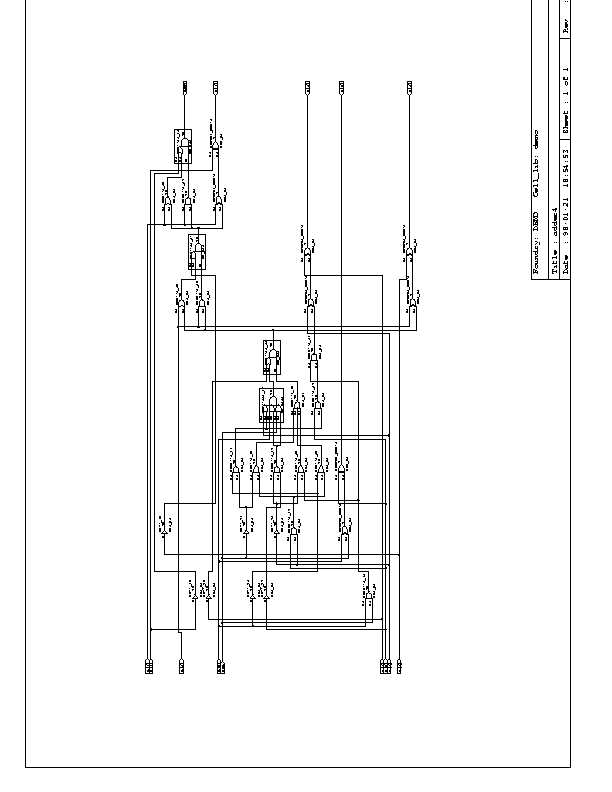

Where are our control signals 'ADD' and 'add'? They have gone. This is actually not surprising since the full-adder consist of only combinatorial circuitry. Because nothing has to be controlled the PARTHENON synthesizer has optimized them away. Actually it is a question of style to having introduced them after all. If we omit them, on the other hand, module instantiation becomes clumsy as in structural description languages. That is why we still use them even in combinatorial designs.

The second example shows the implementation of an 8-bit timer. Here is the interface specification:

The 'SET' signal initializes the timer with the 'INIT' value and the countdown starts. While counting down the 'COUNT' output shows the momentary value of the timer. The 'ENABLE' signal is '1' whenever 'COUNT' is valid, otherwise it is '0'. If the timer reaches zero the 'EXPIRE' signal is activated. It stays active until 'RESET' is triggered. If 'RESET' gets active during countdown, the timer stops and the 'COUNT' output is don't care.

The first step is the interface declaration of the top module:

We have declared four control signals: 'SET', 'RESET' as input and 'EXPIRE', 'ENABLE' as output. The reason for this is, that these signals are supposed to be driven all the times, i.e. they are '0' or '1'. On the other hand the input value 'INIT<8>' is a data terminal which must only be driven if the 'SET' is active. The same is true for the output 'COUNT<8>'. If ENABLE is zero it can have any value. Don't cares are very important when it comes to logic synthesis. A high degree of freedom allows the optimizer to find better solutions (i.e. shorter critical paths, less gates) for a given specification. The 'SET' behavior takes an argument 'INIT', which is declared with the keyword 'instr_arg'.

After the interface declaration we can start now with the implementation of the timer. It consists of an 8-bit decrementor submodule 'dec8' and the top module 'timer8':

After declaration the decrementor module 'dec8' is defined as a 'circuit' in line 17..23. A circuit is a library module that is already synthesized. With this it is possible to reuse third party designs. Thus we only have to declare its interface and a quasi behavior for simulating it. This is done in line 22 with the 'instruct' command. Since subtraction is not defined in binary world we use the addition with the "two's complement". Here is an overview of the SFL operators.

Operators only supported within circuit modules have an entry in the remark column. The comparison operator can be synthesized if the right value is a constant, i.e. a== 0xf8 works fine. In the future SFL will also allow multiplication and other operations for behavioral simulation within SECONDS.

Let's come back to the code. The comments in the code of the timer8 module (line 28..) show the SFL syntax skeleton. It is divided into a "facility declaration F1..F4" (line 33..48) and a "behavior definition part B1..B3" (line 53..89). Facility declaration contains 4 subsections:

• We already know the "I/O facilities" (F1) from the full-adder example. As "internal facilities" (F2) we declare the register <REMAINED<8> and an 8-bit decrementor 'DEC'. In the "argument binding" section (F3) we spot something new. Before we have bound an 'instrin' signal with data input. Now we associate the 'ENABLE' output control signal with the 'COUNT' data output. In programming, "binding together what belongs together" has the same importance as the "divide and conquer principle" (module concept). We finish the declaration part with the last section "state machines" (F4) by introducing the sequential circuit 'MAIN' with the task 'RUN'. State machines can have multiple tasks and every task can bind different arguments. In our case, the 'RUN' task is associated with the 'REMAINED' register. As soon it gets active it will load the register with the specified value (see line 59).

The behavior definition part can be divided into three subsections B1..B3.

• The first one is the "core behavior" (B1). It gets executed in every clock cycle. In our module we do not utilize it. For illustration we introduce the empty statement.
• The "control related behavior" (B2) starts in line 58 with the 'instruct' keyword. This code gets only executed if the related control signal, in our case 'SET', is active. We 'generate' the task 'RUN' of the state machine 'MAIN' and load the 'REMAINED' register with the 'INIT' value.
• The last section is the "state machine behavior" (B3), a very special feature of SFL. In line 63 we see that the 'stage' (i.e. state machine) 'MAIN' holds two states 'DOWN' (countdown) and 'ASSERT' (count= zero). After initialization, the first state will be 'DOWN'. The behavioral part of state machine consists out of two subsections.
• The "core behavior" (B3.1) is executed in every clock cycle the state machine is activated, regardless of the actual state. As our specification requires, we feed the contents of the 'REMAINED' register through the 'COUNT' data terminal to the outside world, as long as 'RESET' is deactivated. Because we defined 'ENABLE' as an 'instrout' terminal it is by default driven with '0' and gets "turned on" with the 'ENABLE(..)' command. This is very practical for the designer. He must only switch on the control signals and does not have to care about switching them off again. This job is done automatically by the PARTHENON synthesizer. SFL owes this feature to the simple clock model (one clock, synchronous, single-phase), in which every action is bound to a single clock cycle.
• In the last section "state behavior" (B3.2) we define the actions for every state separately. We start with the 'DOWN' state in line 73. The 'any' operator is a multiple 'if' construct. The conditions are delimited from the actions by a colon, i.e. 'any{condition1: action1; condition2: action2;... else: action;}'. In our case, we 'finish' execution of the state machine 'MAIN' if the expression 'RESET | SET' is true. Otherwise we decrement the 'REMAIND' register by one and 'goto' the 'ASSERT' state if the decrementor reaches zero. For the condition evaluation we take the output of the decrementor 'DEC.out' and not the register 'REMAINED', because the value of the register changes only in the next clock cycle (':=" operator). Signals available in the same clock cycle are assigned with the '=' operator. Finally we define the behavior of the 'ASSERT' state. If the condition 'RESET | SET' is true we finish the state machine and change to the 'DOWN' state. Otherwise we keep asserting the control signal 'EXPIRE( )'.

Again the simulation modules and the facilities of the top module 'timer8' are listed first. The first column 'CLK' shows the clock period. At CLK=1 we set the timer with the initialization value 'INIT'=0x04. As defined in our code, the state machine 'MAIN' is in the 'DOWN' state and the task 'MAIN.RUN' is not running. At power on, the content of the register 'REMAINED' is unknown. The output signals behave correct. As specified the control terminals 'EXPIRE' and 'ENABLE' are driven with '0'. On the other hand, 'COUNT' is not driven. From CLK=2..5 the timer is counting down in the 'DOWN' state. Now the output 'COUNT' shows the momentary value. In CLK=6 count has reached zero and the 'EXPIRE' signal is asserted, until the 'RESET' in CLK=9.

In the last example we build a simple 8-bit MISC (Minimum Instruction Set Computer!?). It is a register-memory architecture with only 16 instructions. We use circuits out of the system library and show the concept of communicating state machines. First let's have look at the full source code.

In line 8 an SRAM memory 'r256_8.h' with 256 cells is included from the PARTHENON system library. As in C language, the system library is searched if the object is in <brackets>. User defined includes are marked with "double quotes". Apart form the memory an 8-bit incrementor 'inc8.h' and carry look-ahead adder 'cla8.h' are included.

The encoding of the instruction set is done with the define '%d' preprocessor statements in line 15..30. Instructions with a memory operand (LDAI, LDXI, LDXM, STXM, BC) have their MSB encode with '1'. The rest of the encoding is done with the 4 LSBs.

Line 35..42 declare the 'cpu' module. It has a simple memory interface with two data buses 'dti', 'dto', one address bus 'adrs' and two control signals for read and write operations. Further the 'cpu' gets activated with the 'start' terminal.

The behavior of the 'top' module is defined in line 47..55. Thanks to the object oriented SFL syntax connecting the 'ram' memory and 'cpu' is a piece of cake. The whole behavior is packed into three 'instruct' statements.

The definition of the 'cpu' module starts with the I/O facilities declaration in line 60. The program counter 'pc' is a 8-bit register with reset 'reg_wr'. At power on it will be initialized with '0x00', ready to fetch the first instruction. Register 'a' is an accumulator, 'x' the memory address register, 'c' a carry or condition register. In 'op1' the fetched instruction is stored, while 'op2' holds the immediate memory operand. The memory data register 'md' is used for register deferred addressing mode of the ALU instructions ADCX and ANDX.

In line 81..86 two state machines and corresponding tasks are declared. The 'if.ift' task controls the instruction fetch and the 'exec.ext' cares for proper execution.

• The 'if' stage contains two states. In state 'fetch1' the instruction is stored in the 'op1' register and the program counter is incremented. Only the MSB of the data bus 'dti<7>' is decoded. In case of an immediate instruction we goto state 'fetch2' and load the operand into 'op2'. Otherwise we 'relay' execution to the 'exec.ext' task. The statement 'relay exec.ext( );' is a shortcut for 'finish; generate exec.ext( );'. Thus the state machine 'if' is deactivated in the next clock cycle (leave behind control).
• State machine 'exec' also holds two states. In state 'exec1' we first decode the ALU instructions ADCX and ANDX since they take a memory operand. If the expression in line 118 is true, the operand is loaded into the 'md' register and control is transferred to exec2. We also 'generate' the instruction fetch task 'if.ift( )'. With this, ADCX and ANDX are pipelined instructions. During the next clock period both tasks ('if.ift' in state 'fetch1' and 'exec.ext' in stage 'exec2') will be active. In state 'exec2' we only need the resources of the carry look-ahead adder. Thus the memory buses are free for instruction fetch. All other instructions are decoded and executed in line 124..139. Here again we 'relay' execution to the 'if.ift( )' task which means that we finish the 'exex.ext' task and generate the 'if.ift' one.

With these constructs control can be easily transferred from state machine to state machine and various kind of parallelisms can be utilized (i.e. leave behind, pipeline, etc.)

This code is set in the simulator script 'cpu.scr' with 'meset /ram/cell X00 0X83 0Xfd..'. Data is set with 'memset /ram/cell Xfd 0X12 0X34 0X00'.

After listing the simulated modules and the facilities of the 'top' module, simulation starts. The first colon 'CLK' numbers the clock cycles. After triggering the 'start' control signal in CLK=2 the 'ift' task is activated for two clock cycles: first in the 'fetch1' state (instruction fetch of LDXI) and then in the 'fetch2' state (operand fetch 0xfd). In CLK=4 the task 'ift' finishes and the execution task 'ext' is activated (relay statement). The operand 0xfd is transferred to the memory address register 'x'. If we compare the values in the colon 'ift' with the ones in 'ext' during the following clock cycles, we can see the ping-pong control between these two tasks. Only in CLK=14 both task are active because the instruction ADCX is pipelined. While the 'ift' task fetches the next instruction LDXI the 'ext' task adds the values 'a'= 0x12, 'md'= 0x34, 'c'= 0 and writes the result back into the accumulator register 'a'=0x46. The program hangs up in an endless loop after 'CLK'=21.

Please try also these code examples:

The main advantages of SFL are:

• Functional description: SFL is very close the software programming languages like C or Pascal. They stress behavior rather than structure. Thanks to the RTL level coding the gap between modeling and circuit implementation (ASIC, FPGA) can be closed with the powerful synthesis tools of the PARTHENON system.
• Simple clock model: This allows the separation into control- and data signals, a unique feature of SFL. Thanks to the "light-up principle" the SFL code is very compact and easy readable. Further, faster simulation is possible because of the event- driven execution.
• Future: dynamic hardware programming: In order to close the hardware-software gap we are working on a new architecture called PCA (Plastic Cell Architecture). It will be a platform that supports dynamic module instantiation. SFL will be enhanced with constructs like 'malloc' or 'free' in C language. Hardware will become soft- a big challenge and an opportunity to get rid of the bottleneck of the Neumann-type computer paradigm.
